Detailed Analysis & Application Scenarios
1. Metallic Materials
Representative Materials: Babbitt, Bronze, Aluminum Alloys.
Core Advantages: Unmatched load capacity, fatigue strength, and high thermal conductivity, enabling effective heat dissipation. The preferred choice for extreme heavy-load and high-speed applications.
Key Disadvantages: Reliant on a continuous external lubrication system; relatively poor corrosion resistance; higher coefficient of friction, prone to adhesive wear under poor lubrication.
Typical Applications: Automotive engines, large marine engines, industrial gearboxes, turbomachinery.
2. Polymer Materials
Representative Materials: PTFE, POM, PA, PEEK, UHMW-PE.
Core Advantages: Inherent self-lubricating properties, quiet operation, excellent resistance to corrosion and chemicals, ability to tolerate embedded foreign particles, and generally lower cost.
Key Disadvantages: Very poor thermal conductivity, leading to heat buildup and limiting their maximum PV value; susceptible to creep and aging; limited mechanical strength and high-temperature resistance.
Typical Applications: Food and beverage processing equipment, chemical process pumps, office machinery, medical devices, cleanrooms – any application where external lubrication is undesirable or impossible.
3. Composite Materials
Representative Materials: Fiber-reinforced polymers, Metal-matrix composites, Carbon-carbon composites.
Core Advantages: "Best of both worlds". By combining a polymer matrix with fibrous reinforcement, they achieve a balance of high strength, excellent wear resistance, and superior self-lubricating properties. They can be tailored for specific operating conditions.
Key Disadvantages: Highest material and manufacturing costs; more complex material selection and design process.
Typical Applications: Aerospace actuation systems, high-performance automotive suspension, subsea equipment, and other extreme or special-duty conditions where traditional metals or pure polymers are insufficient.
Metal Plain Bearings: Strength and Durability in Industrial Applications
Traditional Alloys: Proven Performance in Demanding Environments
Metal plain bearings have long been the go-to choice for many industrial applications due to their exceptional strength and durability. Commonly used alloys include bronze, brass, and steel, each offering unique properties suited for specific operating conditions. Bronze bearings, for instance, excel in applications requiring high load-bearing capacity and corrosion resistance. Their ability to withstand extreme temperatures and maintain dimensional stability makes them ideal for heavy machinery in metallurgy and construction.
Innovations in Metal Bearing Technology
Technological progress in the field of metallurgy has recently resulted in the creation of unique alloys that expand the capabilities of metal plain bearings. Metal bearings that incorporate solid lubricants, such as graphite or molybdenum disulfide, within themselves are one example of these advancements. Applications where frequent lubrication is difficult or impossible can benefit from these bearings' decreased maintenance needs and increased wear resistance.
Limitations and Considerations
While metal plain bearings boast impressive strength and heat resistance, they are not without drawbacks. Their higher weight compared to polymer alternatives can be a disadvantage in applications where weight reduction is crucial. Furthermore, metal bearings might be more likely to seize or gall if not properly cared for, and they might need lubricating more often. When choosing metal bearings for their projects, engineers should give careful consideration to these considerations.
Polymer Plain Bearings: Lightweight Solutions for Modern Engineering Challenges
The Rise of High-Performance Plastics
Technological developments in the field of materials science have led to the rapid adoption of polymer plain bearings in the last several years. An intriguing alternative to conventional metal bearings is a material with low friction, chemical resistance, and self-lubricating capabilities; examples of such materials are PTFE, POM, and PEEK. When it comes to automotive and aerospace applications, where weight reduction leads to better fuel efficiency and performance, these lightweight solutions are invaluable.
Unique Advantages of Polymer Bearings
One of the standout features of polymer plain bearings is their ability to operate in dry-running conditions. Because of this quality, external lubrication is unnecessary in a lot of uses, which lowers maintenance needs and the pollution that comes with lubricant disposal. The high standards of cleanliness and contamination avoidance in sectors like food processing and pharmaceuticals make polymer bearings an ideal choice. These bearings also have outstanding resistance to chemicals and harsh environments.
Overcoming Limitations through Material Innovation
While polymer bearings offer numerous advantages, they traditionally faced limitations in high-temperature and high-load applications. New polymer compounds, however, have emerged as a result of persistent R&D efforts that can survive far harsher environments. Case in point: plastic bearings can now compete with metal ones in harsher settings thanks to fiber-reinforced polymers and specifically made high-temperature grades.
Composite Plain Bearings: The Best of Both Worlds
Synergistic Combinations for Enhanced Performance

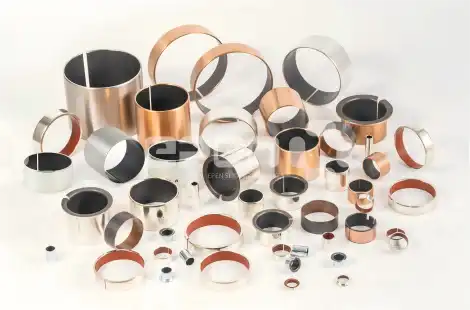

Composite plain bearings are state-of-the-art because they merge the best features of metal and polymer. In most cases, these bearings will have a polymer lining for little friction and wear resistance and a metal backing for structural integrity and load bearing capability. Whether it's heavy-duty construction equipment or innovative manufacturing gear, composite bearings are the way to go because of their synergistic combination and great performance across numerous dimensions.
Tailored Solutions for Specific Applications
One of the key advantages of composite plain bearing materials is their versatility and customizability. The construction and content of these bearings can be adjusted by manufacturers to suit certain application needs. Bearings made for usage in water, for instance, may include polymer linings that are more resistant to salt water and corrosion-resistant metal backings. Engineers can optimize bearing performance for specific operating situations by tailoring material qualities.
Advancements in Composite Bearing Technology
Researchers in the area of composite plain bearings are always looking for new ways to make these bearings and different combinations of materials. The application of sophisticated bonding techniques to strengthen the interface between metal and polymer components and the inclusion of nanomaterials to increase wear resistance and thermal conductivity are two examples of recent advancements. These developments are expanding the capabilities of plain bearings and providing engineers in a wide range of sectors with exciting new opportunities.
Summary & Selection Guidelines
Choose Metallic Bearings: When your application involves very high loads and speeds and has a reliable, continuous lubrication system.
Choose Polymer Bearings: When your application requires maintenance-free operation, corrosion resistance, low noise, and low cost, and where load, speed, and temperature are low to moderate.
Choose Composite Bearings: When facing extreme or demanding conditions that require a combination of high PV value, self-lubrication, high-temperature resistance, and lightweight properties, and where the budget allows.
This detailed analysis is intended to assist engineers and designers in the initial selection process for high-performance plain bearings. For specific application scenarios, more targeted material recommendations can be provided by www.cnepen.com .
FAQ
1. What factors should I consider when choosing a plain bearing material?
Key factors include load capacity, operating temperature, speed, environmental conditions, and maintenance requirements. Consider the specific demands of your application and consult with a plain bearing manufacturer for expert advice.
2. Are composite bearings more expensive than metal or polymer options?
While composite bearings may have a higher initial cost, they often provide better long-term value through improved performance and longevity in challenging applications.
3. Can plain bearings be customized for specific applications?
Yes, many plain bearing manufacturers offer customization options to meet unique requirements, including special sizes, materials, and surface treatments.
