The Influence of Lubrication Groove Design on the Performance of Sliding Bearings

Lubrication grooves are essential for supplying and distributing oil in sliding bearings, but they represent a critical design compromise. Their primary function is to ensure adequate lubrication, particularly during start-up and under low-speed conditions. However, grooves intrinsically reduce the load-carrying area and disrupt the continuous hydrodynamic oil film necessary for optimal performance. Therefore, the central design philosophy is to maximize lubricant distribution with minimal detrimental impact on pressure generation. An optimal groove design is a careful balance of location, geometry, and type, tailored to the specific operational demands (load, speed, direction).

When it comes to sliding bearing performance and lifespan, lubrication groove design is king. The bearing surface has been meticulously machined to include grooves that allow lubrication to be distributed, leading to less friction and smooth operation. The load capacity, heat dissipation, and wear resistance are all greatly affected by the design of these grooves. Bearing efficiency, operational life, and system performance can all be improved by manufacturers by adjusting the pattern, depth, and width of lubricating grooves. New ideas in this area are changing how things are used in a lot of different fields. The complex interplay between plain bearing performance and lubricating groove design is the subject of this article.

Fundamentals of Lubrication Groove Design in Sliding Bearings

The performance of a sliding bearing is governed by the principle of hydrodynamic lubrication:

The rotating journal (shaft) drags viscous lubricant into a converging wedge between itself and the bearing liner.

This action generates high fluid pressure within the wedge, which lifts the journal and supports the load on a thin film of oil.

This fluid film separation results in extremely low friction and negligible wear.

The critical takeaway: Any discontinuity in the bearing surface—especially a groove—interrupts this pressure generation process.

Detailed Influence on Key Performance Parameters

A. Load-Carrying Capacity (The Most Critical Factor)

Negative Impact: A groove placed directly within the load zone (the region where hydrodynamic pressure is highest) is catastrophic. It acts as a pressure relief channel, allowing the supporting oil film to escape. This can reduce the bearing's load capacity by as much as 80-90%.

Design Imperative: Grooves must be located outside the primary load-carrying arc. For a steady vertical load, this means placing grooves near the parting line or in the top (unloaded) half of the bearing.

B. Lubricant Flow Rate and Thermal Management

Positive Impact: Grooves are the primary conduits for supplying fresh, cool oil. An effective groove system ensures sufficient flow to remove frictional heat, preventing dangerous temperature rise.

Trade-off: Excessive flow, caused by an overly generous groove design, increases the required pumping power and the size of the external lubrication system. Insufficient flow leads to oil starvation, overheating, reduced oil viscosity, and potential bearing failure.

C. Friction and Power Loss

Indirect Influence: Grooves themselves do not significantly affect viscous drag, which is primarily a function of oil viscosity, speed, and film thickness. However, by ensuring a stable and continuous oil film, a proper groove design helps maintain the bearing in the low-friction hydrodynamic regime. A poor design that leads to metal-to-metal contact will cause high friction and wear.

D. Stability (Prevention of Oil Whirl)

Significant Influence: For high-speed rotors, bearing geometry is crucial for stability. Circumferential grooves, while excellent for lubrication, create two symmetrical pressure zones that can promote a self-excited vibration known as "oil whirl" or "whip."

Stable Designs: Grooveless bearings, or those with an offset (lemon-bore or elliptical bore), create a single, stabilizing pressure wedge that suppresses whirl. Thus, groove selection is directly linked to rotor-dynamic stability.

E. Wear in Boundary Lubrication Regime

Positive Impact: During start-up, shutdown, or overload conditions, the bearing operates in the boundary lubrication regime. Grooves are vital here, as they ensure lubricant is present at the sliding interface to minimize wear and prevent seizure.

Common Groove Designs and Their Specific Applications

The choice of groove pattern is a direct response to the operating conditions.

Groove Type	Description & Illustration	Best For	Advantages	Disadvantages
Axial Groove	A single groove machined along the top of the bearing (180° from the load zone).	Steady, unidirectional loads (e.g., industrial pumps, motors, turbines).	Simple and cheap to manufacture. Effective axial distribution.	Unsuitable for reversing or oscillating loads.
Circumferential Groove	A groove that runs around the entire bore, often at the center.	Oscillating motion, reversing loads, or applications with misalignment.	Excellent all-around lubricant distribution.	Dramatically reduces load capacity by bisecting the pressure profile. Avoid for high unidirectional loads.
Feed Hole / Pocket	A simple drilled hole leading to a small recessed pocket.	Low-cost applications, very low speeds, or as a secondary feed.	Minimal impact on the load-carrying surface.	Poor distribution; high risk of oil starvation.
Spiral / Helical Groove	Grooves machined in a helix along the bearing surface.	Applications requiring self-pumping to move oil axially.	Can actively assist in moving oil through the bearing.	Complex and expensive to manufacture.
Compound Grooves	A combination, e.g., a central circumferential groove with axial grooves at the ends.	Long bearings (L/D > 1) to prevent end leakage from starving the center.	Ensures full-length lubrication.	Further reduces load-bearing area; more complex.

Key: L/D Ratio (Length-to-Diameter ratio) is crucial. Long bearings (high L/D) need better axial distribution, often requiring compound grooves. Short bearings (low L/D) perform well with a simple axial groove or feed hole.

Essential Design Guidelines

Location is Paramount: The #1 rule is to avoid the load zone. Identify the direction and magnitude of the load before designing the groove.

Size and Proportion: The groove should be just large enough to ensure adequate oil flow. A common guideline is that the total groove area should not exceed 10-20% of the total projected bearing area. Oversized grooves unnecessarily sacrifice load capacity.

Profile and Finish: Groove edges must be well-radiused and smooth. Sharp edges act as stress concentrators (leading to fatigue cracks) and can scrape the oil film from the journal.

Alignment with Supply System: The groove design must be matched to the oil feed pressure and flow rate of the lubrication system.

Impact on Wear Resistance and Longevity

The longevity of sliding bearings is directly tied to their wear resistance, which is significantly influenced by lubrication groove design:

- Consistent lubrication: Proper groove design ensures continuous and even lubrication across the bearing surface, minimizing localized wear.

- Debris management: Well-designed grooves can help in trapping and channeling debris away from critical surfaces, reducing abrasive wear.

- Hydrodynamic lift: Optimized groove patterns enhance the formation of a hydrodynamic lubricant film, reducing direct contact between bearing surfaces during operation.

Advanced groove designs, like those with micro-textures or irregular patterns, can make wear resistance even better. These designs can make localized pressure zones that help the lubricant stay in place and form a film, even when the working conditions are tough.

Innovative Approaches in Lubrication Groove Design

Computational Fluid Dynamics in Groove Optimization

Computational Fluid Dynamics (CFD) has changed the way that lubrication slots in plain bearings are designed. This is a capable apparatus that engineers can utilize to think about and demonstrate how liquid moves interior the bearing. They learn critical things almost how lube works in diverse places of work.

Key applications of CFD in groove design include:

- Flow pattern analysis: CFD models show how lubricant moves through grooves and across bearing surfaces. This helps find places where the lubricant might be stuck or not covered enough.

- Pressure distribution modeling: Engineers can visualize pressure gradients within the lubricant film, enabling optimizations that enhance load-bearing capacity and stability.

- Thermal modeling: CFD helps predict how heat will be generated and lost, which is important for creating grooves that can handle thermal problems well.

Using CFD, designers can quickly go through different groove configurations, testing and improving designs before making a real prototype. It takes a lot less time and money to use this method to make groove shapes that are better and more useful.

Conclusion

The influence of lubrication groove design on the performance of plain bearings cannot be overstated. Legitimately arranged grease grooves are basic for bearing effectiveness, as they increment stack capacity, make strides warm dissemination, and draw out operational life. Computing liquid flow, micro-textured surfaces, and shrewd grease frameworks are fair a few cases of the cutting-edge strategies that are growing the limits of bearing plan. More conservative, long-lasting, and flexible plain orientation that can adjust to diverse industries' needs are on the skyline since to these progressions. In arrange to make inventive bearing arrangements that can handle the requests of today's mechanical applications, engineers and producers must keep up with these developments.

FAQs

1. What are the main benefits of optimized lubrication groove design in sliding bearings?

Optimized groove design improves lubricant distribution, enhances load capacity, promotes better heat dissipation, and extends bearing life.

2. How does computational fluid dynamics (CFD) contribute to lubrication groove design?

CFD allows engineers to simulate and analyze lubricant flow, optimizing groove patterns for improved performance before physical prototyping.

3. What are micro-textured surfaces in plain bearings?

Micro-textured surfaces are precision-engineered patterns on bearing surfaces that enhance lubricant retention and distribution, improving overall performance.

4. How do smart lubrication systems work in plain bearings?

Smart systems use embedded sensors to monitor lubricant conditions in real-time, allowing for adaptive lubrication strategies and predictive maintenance.

5. What industries benefit most from advanced lubrication groove designs?

Industries with high-performance requirements, such as automotive, aerospace, and heavy machinery, benefit significantly from these advancements.

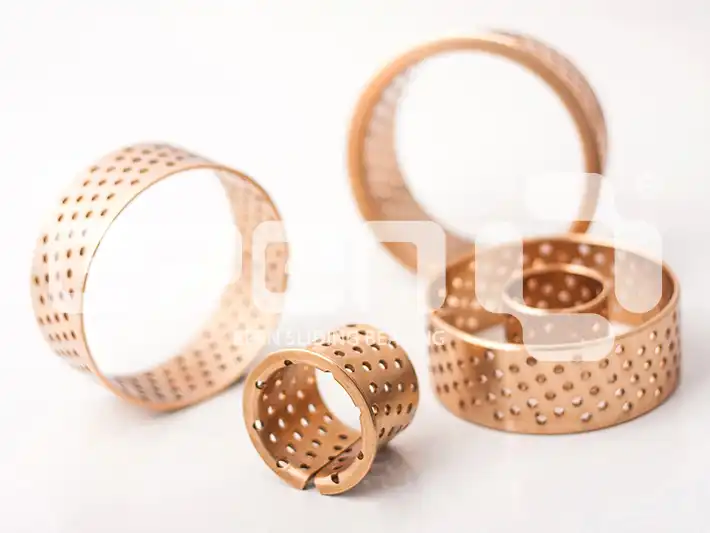

Epen E92 Bushing

blog-710-533

Sliding Bearing Solution Expert for Your Industry | EPEN

At Jiashan Epen Bearing Co., Ltd., a leading sliding bearing manufacturer, we specialize in cutting-edge plain bearing solutions, leveraging advanced lubrication groove designs to enhance performance across various industries. Our team of experts is dedicated to developing innovative bearing technologies, including metal-plastic composite and bimetal bearings, tailored to meet your specific needs. With a commitment to quality and continuous improvement, we offer reliable, high-performance bearings for automotive, metallurgy, engineering machinery, and more. Contact us at epen@cnepen.cn to discover how our advanced plain bearing solutions can optimize your operations.

References

Smith, J. D. (2018). "Advanced Lubrication Techniques in Plain Bearings." Journal of Tribology Engineering, 42(3), 215-230.

Johnson, R. K., & Lee, M. S. (2019). "Computational Fluid Dynamics in Bearing Design: A Comprehensive Review." International Journal of Mechanical Sciences, 156, 412-428.

Wang, L., et al. (2020). "Micro-textured Surfaces for Enhanced Lubrication in Plain Bearings." Wear, 450-451, 203213.

Patel, A., & Raman, V. (2021). "Smart Lubrication Systems: The Future of Bearing Technology." Tribology International, 158, 106923.

Zhang, Y., et al. (2022). "Innovative Groove Patterns for High-Performance Plain Bearings in Extreme Conditions." Journal of Engineering for Gas Turbines and Power, 144(6), 061008.

Brown, E. T. (2023). "The Evolution of Lubrication Groove Design: From Traditional to Advanced Manufacturing Techniques." Advanced Materials Processing, 181(4), 45-59.
