The Role of Sliding Bearings in Construction Machinery
First, it's important to understand why sliding bearings are often chosen for demanding applications:
High Load Capacity: They can withstand very high static and dynamic loads (e.g., in swing circles, boom hinges, and track rollers).
Damping & Impact Resistance: The oil film or material itself absorbs vibration and dampens shock loads, which are common in equipment like excavators and bulldozers.
Contamination Tolerance: With the right material (e.g., polymer composites), they can operate in dirty environments where grit would destroy a rolling-element bearing.
Edge Loading Performance: They are less sensitive to misalignment and edge loading compared to ball bearings.
Understanding Sliding Bearing Technology
Essential components of construction machinery include sliding bearings, plain bearings, and bushings. By lowering friction and sustaining loads, these bearings allow moving parts to move smoothly with one another. Sliding bearings, in contrast to rolling bearings, run on a thin layer of lubrication, enabling smooth motion and effective load distribution. Cutting edge plans of sliding orientation join unused materials and surface medications to improve their execution and strength, displaying the significant advancement of the science fundamental them.
Applications in Construction Equipment
Many pieces of construction equipment rely on sliding bearings. These essential parts are the lifeblood of heavy machinery including excavators, bulldozers, cranes, and loaders. Pivot points, hydraulic cylinders, and articulated joints are common places to find sliding bearings, which are designed to endure extreme loads and harsh environments. In equipment that experiences frequent directional changes and significant operational stress, their capacity to handle radial and axial loads makes them important.
Benefits of Sliding Bearings in Heavy Machinery
There are a lot of benefits to using sliding bearings in construction equipment. Shock loads and vibrations are typical in construction environments, but these bearings excel at handling them. Because of their small size and ability to self-lubricate, they require less maintenance and may be easily integrated into machinery. Modern construction machinery that values both performance and environmental sustainability would benefit greatly from sliding bearings, which help to reduce noise and increase energy efficiency.
Enhancing Durability Through Material Selection and Design
Key Strategies to Enhance Durability
Enhancing durability is a multi-faceted approach involving material science, design, lubrication, and maintenance.
1. Material Selection: The Foundation of Durability
Choosing the right bearing material is the most critical decision.
| Material Type | Key Properties | Ideal Applications in Construction Machinery |
|---|---|---|
| Bimetal (Steel-backed + Bronze) | Excellent load capacity, good fatigue strength, well-established. | Engine crankshafts, connecting rods, high-speed, well-lubricated components. |
| Trimetal (Steel + Bronze/Copper-Lead + Overlay) | Superior fatigue strength, excellent conformability and embeddability. | Critical, highly-loaded joints in hydraulics, pivot points under high dynamic load. |
| Thermoplastics (e.g., POM, PA, PEEK) | Corrosion-resistant, low friction, dry-running capability, lightweight. | Linkage arms, control levers, bushings in wet or corrosive environments. |
| Thermosets (e.g., Phenolic, EP) | High temperature resistance, excellent dimensional stability. | Applications with limited lubrication or high thermal loads. |
| Fiber-Reinforced Composites | Very high strength-to-weight ratio, corrosion-resistant. | Specialized applications requiring lightweight and strength. |
| PTFE-Based Composites | Extremely low friction, excellent dry-running capability. | The top choice for most pivot and linkage points. Lined with a steel backing for strength, these bearings (e.g., with PTFE/fiberglass or PTFE/bronze) can run dry, tolerate misalignment, and resist contamination. |
| Wear-Resistant Cast Bronzes | High mechanical strength, good machinability. | Sleeve bearings, flanged bushings for general heavy-duty use. |
Key Takeaway: For the harshest, dirtiest, and often poorly-lubricated environments of construction machinery (like pin joints in excavator arms), PTFE-based composite bushings are often the best choice for maximizing service life.
The material is only part of the solution. The design must support it.
Surface Engineering: For metallic bearings, applying a soft, thin overlay (e.g., Babbitt) or a coating (e.g., PTFE, MoS₂) drastically reduces friction and provides a run-in layer, protecting the harder substrate until a full oil film is established.
Lubrication System Design:
Groove Design: Ensure lubrication grooves and holes are positioned to direct oil to the highest-pressure areas. Helical grooves can help pump oil through the bearing.
Forget Grease? Consider Oil: While grease is common for its simplicity, centralized automatic lubrication systems that deliver a metered amount of fresh oil can flush out contaminants and provide superior cooling and film formation, significantly enhancing durability.
Clearance Optimization: The radial clearance must be precisely calculated. Too little clearance causes overheating and seizure; too much allows excessive vibration, impact, and "pound-out," leading to premature failure.
Geometry and Alignment: Designing for self-alignment (using spherical plain bearings) compensates for misalignment from frame deflection or assembly tolerances, preventing destructive edge loading.
3. Advanced Lubrication Practices
Lubrication is the lifeblood of a sliding bearing.
Lubricant Selection: Use high-performance lubricants with:
High Viscosity Index (VI): Maintains stable viscosity across a wide temperature range (from cold mornings to hot operation).
Extreme Pressure (EP) / Anti-Wear (AW) Additives: Form a protective layer on metal surfaces to prevent wear during boundary lubrication (start-up, shut-down, high shock loads).
Solid Lubricants: Greases containing Molybdenum Disulfide (MoS₂) or Graphite can provide lubrication in case the oil film breaks down.
Contamination Control: Implement effective sealing solutions (e.g., multi-lip seals, exclusion seals) to keep abrasive grit and moisture out. This is paramount in earth-moving applications.
4. Proactive Maintenance and Operational Awareness
Durability is also influenced by how the machinery is used and maintained.
Condition Monitoring: Use oil analysis to check for wear metals and contamination. Monitor bearing temperatures and machine vibration for early signs of failure.
Strict Adherence to Lube Intervals: Follow the manufacturer's guidelines for lubrication type, quantity, and interval. In extremely dirty conditions, intervals may need to be shortened.
Proper Installation: Use correct tools and procedures to avoid damaging the bearing surface during press-fitting. Ensure proper alignment.
Advanced Materials for Sliding Bearings
The durability of sliding bearings in construction machinery largely depends on the materials used in their manufacture. Traditional materials like bronze and babbitt have been complemented by modern alternatives such as engineered plastics and composite materials. These present day materials are more tough, have superior load-bearing capacities, and diminished grinding coefficients. The utilize of consolidated strong greases in polymer-based orientation permits them to work effectively in troublesome situations with negligible outside grease, for illustration. If you need your hardware to final as long as conceivable, you require to make beyond any doubt you select the right bearing materials for the work.
Innovative Design Features
Cutting-edge sliding bearing designs incorporate features that significantly enhance their durability and performance. One illustration is self-aligning heading, which can decrease push on the bearing and increment its working life by compensating for misalignment concerns. Consistent performance under different loads is ensured by grooved designs, which allow for greater lubrication distribution. Optimal performance characteristics can be achieved by combining the strengths of multiple materials in certain bearings that utilize composite architectures. The improved durability of machinery is a direct result of the higher bearing longevity brought about by these novel design characteristics.
Customization for Specific Applications
To truly enhance the durability of construction machinery, sliding bearings must be tailored to specific application needs. When making these alterations, it's imperative to think approximately things like working speeds, natural introduction, openness for support, and stack circumstances. Equipment designers can get one-of-a-kind solutions for their machinery's specific problems by collaborating closely with bearing producers. Construction equipment that is both dependable and long-lasting can benefit from custom-engineered bearings, which can optimize performance and durability for specific applications by including specialized geometries, surface treatments, or material compositions.
Maintenance Strategies for Maximizing Bearing Life
Proper Lubrication Techniques
Effective lubrication is paramount in extending the life of sliding bearings and, by extension, the durability of construction machinery. Choosing the correct lubricant, setting proper relubrication intervals, and making sure you apply it correctly are all part of proper lubrication processes. One example is the integrated lubrication system used in some modern sliding bearings. This system dispenses lubricant automatically, allowing for optimal performance with minimal operator involvement. Bearing longevity and overall equipment reliability are greatly improved by regularly monitoring lubricant condition and promptly replenishing it.
Predictive Maintenance and Condition Monitoring
Implementing predictive maintenance strategies can dramatically enhance the durability of sliding bearings in construction machinery. Vibration analysis and oil debris analysis are two examples of modern monitoring methods that can catch bearing problems in their early stages, before they become catastrophic. To reduce downtime and maximize equipment lifespan, maintenance teams can use these technologies to plan interventions at the most appropriate periods. Machines can be continuously improved in terms of durability through the use of condition monitoring data, which can also guide future bearing selection and design decisions.
Best Practices for Installation and Replacement
The durability of sliding bearings is greatly influenced by proper installation and timely replacement. Preventing early wear and ensuring efficient load distribution both depend on proper alignment during installation. The performance and longevity of bearings are greatly affected by the installation process, thus it is important to use the right equipment and follow the manufacturer's instructions. In addition, to keep equipment reliability consistent, it is helpful to define explicit criteria for replacing bearings. These criteria can be based on operational hours, performance indicators, or wear patterns. Construction companies may get the most out of sliding bearings and make their machines last longer if they follow these guidelines.
Conclusion
Advanced materials, innovative designs, and proactive maintenance practices all come together to make construction machinery last longer using sliding bearings. Construction businesses can greatly increase production, decrease downtime, and operational life of equipment by carefully selecting and deploying high-quality sliding bearings. There will be significant advancements in bearing technology and maintenance procedures driven by the increasingly crucial function of sliding bearings in strengthening machinery durability as the industry evolves.
FAQs
1. What are the main advantages of using sliding bearings in construction machinery?
Sliding bearings offer excellent load-bearing capacity, compact design, and the ability to handle shock loads and vibrations. They also contribute to noise reduction and improved energy efficiency.
2. How often should sliding bearings be replaced in construction equipment?
Operating circumstances, load, and maintenance procedures are determinants of the replacement interval. Finding the best time to replace something requires regular inspections and tracking of its condition.
3. Can sliding bearings operate in dusty or wet environments?
Yes, many modern sliding bearings are designed to withstand harsh environments. Effective protection against dust and moisture can be achieved with sealed designs and materials that include embedded lubricants.
Enhance Your Construction Machinery's Durability with EPEN Sliding Bearings

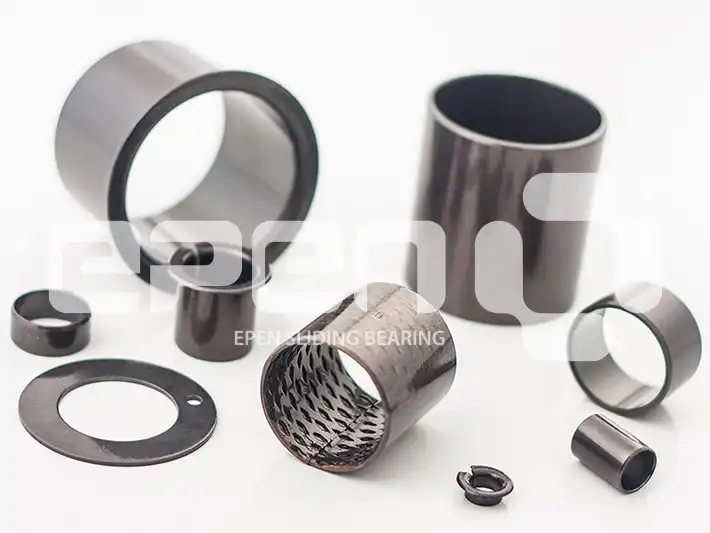

EPEN is a leading sliding bearing supplier specializing in high-quality bearings for construction machinery. Our extensive range of metal-plastic composite bearings and bimetal bearings are engineered to enhance equipment durability and performance. With a commitment to innovation and customer satisfaction, EPEN offers customized solutions to meet your specific needs. Experience the difference with our advanced bearing technology. Contact us at epen@cnepen.cn to discover how our products can optimize your construction machinery's longevity and efficiency.
