Understanding Corrosion-Resistant Plain Bearings in Marine Applications
Materials and Design of Corrosion-Resistant Plain Bearings
Modern marine-grade plain bearings are engineered from advanced materials to combat these challenges:
Polymer Composites (e.g., PTFE, POM, PEEK):
Advantages: Inherently corrosion-proof, self-lubricating, resistant to chemical and abrasion, and lightweight.
Common Types:
PTFE-based Liners: Offer the lowest coefficient of friction and are often used as a lining in composite bearings (e.g., metal-backed with a PTFE/fiber composite layer).
Thermoplastics (POM, Nylon): Provide good strength, wear resistance, and are suitable for low to medium load applications.
Fiber-Reinforced Composites:
These bearings combine a polymer matrix (like epoxy or phenolic) with reinforcing fibers (glass, carbon, or aramid). They exhibit excellent strength-to-weight ratio, outstanding corrosion resistance, and good fatigue life.
Stainless Steels (e.g., 304, 316):
Used as the backing material for polymer-lined bearings or as the base material for solid sleeves. Grade 316 stainless steel, with its higher molybdenum content, offers superior resistance to pitting in chloride environments.
Specialty Alloys (e.g., Nickel-Aluminum Bronze, Monel):
These copper and nickel-based alloys offer excellent strength and inherent corrosion resistance in seawater, often used in highly stressed components like rudder bearings and propeller shaft bearings.
Corrosion-resistant plain bearings used in marine equipment are typically composed of advanced materials designed to withstand the harsh saltwater environment. Combinations of bronze alloys, specialty polymers, and high-grade stainless steel are common materials used in these bearings. Optimal performance and durability in marine environments are achieved through careful material selection.
Stainless steel, particularly grades like 316 and 317, is commonly used for the bearing housing due to its excellent corrosion resistance. The increased molybdenum content in these grades makes them more resistant to pitting and crevice corrosion in situations with high chloride concentrations. Common marine-grade bronze alloys used for bearing surfaces include aluminum bronze and nickel-aluminum bronze. The load-bearing capacity and corrosion resistance of these materials are second to none.
The oceanic bearing industry has seen a later uptick in the utilize of polymer-based items. Composites made of high-performance polymers, such as Polyether Ether Ketone (Look) or Polytetrafluoroethylene (PTFE), have surprising characteristics such as diminished contact, self-lubrication, and momentous resistance to erosion. These materials are perfect for numerous marine applications due to their tall quality and flexibility to wear, which can be assist moved forward by including strands or fillers.
Design Considerations
When designing corrosion-resistant plain bearings for use in marine equipment, it is important to keep a number of things in mind to guarantee the best possible performance in harsh conditions. Load, speed, and contact with saltwater and other corrosive substances are some of the unique operational circumstances that engineers must take into consideration.
One key design consideration is the incorporation of sealing systems to prevent water ingress and contamination. To prevent debris and saltwater from getting onto the bearing surfaces, specialist seals like lip seals or labyrinth seals may be used. To further improve lubrication and corrosion resistance, the bearing design could incorporate elements such as lubrication channels or grease grooves.
Another vital perspective is the surface wrap up of the bearing components. A smooth surface wrap up makes a difference to minimize contact and wear, whereas moreover decreasing the potential for erosion start. Progressed surface medicines, such as nitriding or difficult chrome plating, may be connected to assist improve the erosion resistance and wear properties of the bearing surfaces.
Performance Characteristics
Corrosion-resistant plain bearings designed for marine applications exhibit several key performance characteristics that set them apart from standard bearings. Reliability in the harsh sea environment depends on these qualities.
One distinguishing quality is their extraordinary resistance to corrosion brought on by exposure to saltwater. This is accomplished by utilizing coatings and materials that are resistant to corrosion, which inhibit the growth of rust and other types of deterioration. Despite extended exposure to saltwater, the bearings retain their structural integrity and dimensional stability, guaranteeing constant performance for the duration of their service life.
Among the most important performance characteristics of marine plain bearings are their low friction and wear resistance. Energy losses and heat generation are reduced because to the unique materials and surface treatments utilized in these bearings, which help to minimize friction between moving parts. Both the bearings and the machinery they support benefit from increased efficiency and less wear caused by this low-friction operation.
Applications of Corrosion-Resistant Plain Bearings in Marine Equipment
Primary Applications in Marine Equipment
Steering and Rudder Systems: Critical for the smooth and low-friction movement of rudder stocks. Bearings here must withstand high static loads and shock loads while being permanently submerged.
Propulsion Systems: Used in shaft bearings (stern tubes) and strut bearings to support the propeller shaft. They manage radial loads and vibrations, and their corrosion resistance is vital as they are in direct contact with seawater.
Control Surfaces: In fin stabilizers, flap actuators, and other hydrodynamic control surfaces, these bearings ensure precise and reliable movement.
Deck Machinery: Applications such as winches, cranes, and windlasses. They endure heavy loads, shock loads, and constant exposure to the harsh weather deck environment.
Valve and Actuator Systems: Used in ball valve trunnions and butterfly valve linkages, where reliable operation is essential for controlling seawater systems, ballast, and fuel lines.
Propulsion Systems
In marine propulsion systems, corrosion-resistant plain bearings are essential for efficient and trouble-free operation in harsh saltwater conditions. Many parts of propulsion systems rely on these bearings, such as stern tubes, rudder assemblies, and propeller shafts.
In propeller shaft applications, corrosion-resistant plain bearings support the rotating shaft and absorb both radial and axial loads. The orientation are subjected to nonstop introduction to saltwater and must persevere tall speeds and serious loads. Specialized materials like marine bronze or polymer composites are often used in these bearings to provide excellent wear resistance and low friction, even in poorly lubricated conditions.
For accurate and dependable steering, rudder assemblies also use simple bearings that are resistant to corrosion. Under the extreme conditions of seawater, these bearings must withstand enormous loads without a hitch. Rudder bearings made of engineered polymer composites or self-lubricating materials can increase service intervals and decrease maintenance needs.
Deck Machinery
Deck machinery on marine vessels and offshore platforms is exposed to harsh environmental conditions, including saltwater spray, high humidity, and temperature fluctuations. Winches, cranes, and hatch covers, among other deck equipment, rely on plain bearings that are resistant to corrosion.
In marine winches, plain bearings support the drum and sheaves, facilitating smooth rotation under heavy loads. Reliability in corrosive conditions and severe shock loads are two of the most important requirements for these bearings. Corrosion-resistant materials like stainless steel or marine-grade bronze are commonly used in winch bearings to ensure longevity and minimal maintenance requirements.
Marine cranes rely on corrosion-resistant plain bearings in their slewing rings, boom pivots, and pulley systems. Even when subjected to saltwater and marine pollutants, these bearings must continue to operate with low friction and retain their performance qualities. Marine crane components can be made much more reliable and long-lasting by using modern polymer composites or carefully treated metallic bearings.
Offshore Platforms
The continual exposure to seawater, marine vegetation, and severe weather conditions makes offshore platforms among the most demanding locations for bearings. Corrosion-resistant plain bearings are critical components in various offshore platform equipment, including jack-up systems, mooring systems, and pipeline connections.
In jack-up systems, plain bearings support the massive loads of the platform while allowing for vertical movement. These bearings must operate reliably under high static and dynamic loads while resisting corrosion from constant seawater exposure. Specialized materials like high-performance polymers or corrosion-resistant metal alloys are often employed to ensure long-term performance in these demanding applications.
Mooring systems on offshore platforms utilize corrosion-resistant plain bearings in fairleads, sheaves, and turret bearings. These components are subjected to constant motion and loads from waves and currents. The bearings must provide low friction and wear resistance while maintaining their integrity in the corrosive marine environment. Advanced bearing designs incorporating self-lubricating materials or specialized sealing systems are often used to enhance reliability and reduce maintenance requirements in mooring applications.
Advantages and Maintenance of Corrosion-Resistant Plain Bearings in Marine Settings
Technical Advantages
Extended Service Life: By resisting corrosion and wear, these bearings significantly outlast conventional steel or bronze bearings in marine settings.
Reduced Maintenance: The self-lubricating properties of polymer composites eliminate the need for complex grease lubrication systems, reducing maintenance intervals and the risk of environmental pollution.
Enhanced Reliability: Prevention of sudden failure due to corrosion or seizure ensures higher system uptime and operational safety, which is paramount for offshore and naval vessels.
Weight Reduction: Composite bearings are significantly lighter than their metal counterparts, contributing to overall weight savings in vessel design.
Benefits of Using Corrosion-Resistant Plain Bearings
Many benefits, including increased performance, dependability, and efficiency, can be achieved through the use of corrosion-resistant plain bearings in maritime machinery. One of the primary benefits is the extended service life of both the bearings and the equipment they support. Reducing the frequency of replacements and associated downtime, these bearings resist the corrosive effects of saltwater and marine environments for longer durations, maintaining their structural integrity and performance qualities.
Another significant advantage is the reduction in maintenance requirements. Corrosion-resistant plain bearings often incorporate self-lubricating materials or advanced sealing systems that minimize the need for frequent lubrication or servicing. Especially in submerged or hard-to-reach places where routine maintenance can be difficult, this not only improves the overall dependability of marine equipment but also decreases maintenance expenses.
Using corrosion-resistant plain bearings in marine environments also has the added benefit of improving operational efficiency. Reduced energy consumption and heat generation are typical outcomes of these bearings' lower friction coefficients when compared to conventional bearings. Propulsion systems can save fuel and perform better in a variety of marine applications because to this increased efficiency.
Maintenance Strategies
While corrosion-resistant plain bearings are designed for durability in marine environments, proper maintenance is still essential to maximize their service life and performance. In marine applications, it is common hone to assess these heading frequently, grease up them legitimately, and take safeguards against outside factors as portion of an successful support procedure.
Visual inspections of the bearings and their surroundings should be performed on a regular basis to detect any indications of damage, corrosion, or wear. As part of these tests, make sure to look for signs of contamination, appropriate alignment, and intact seals. In some cases, non-destructive testing methods such as ultrasonic inspection may be employed to assess the condition of bearings in critical applications.
Proper lubrication is vital for bearings that are not self-lubricating. Marine-grade lubricants specifically formulated for saltwater environments should be used, and lubrication intervals should be adjusted based on operating conditions and manufacturer recommendations. In some cases, automatic lubrication systems may be installed to ensure consistent and adequate lubrication, particularly in hard-to-reach areas.
Future Trends and Innovations
Investigate and improvement endeavors in the field of corrosion-resistant plain bearings for sea applications are continuous, with the objective of making strides execution, solidness, and supportability. More and superior composite materials with moved forward erosion resistance and load-bearing capacities are getting to be progressively prevalent. These novel materials have the potential to give half breed arrangements outlined for specific marine applications by combining the points of interest of customary metallic orientation with polymers' erosion resistance.
The incorporation of smart technologies into bearing systems is another domain of innovation. Incorporating monitoring systems and sensors into bearings allows for the provision of real-time data regarding performance, wear, and environmental factors. Improved scheduling of maintenance tasks and less likelihood of unanticipated breakdowns in mission-critical maritime equipment are both outcomes of this predictive maintenance strategy.
When it comes to bearing plan for sea applications, maintainability is too on the rise. To reduce their negative impacts on the environment without relinquishing execution, researchers are looking toward greener generation strategies and materials. The creation of bearing materials and biodegradable lubricants that reduce the danger of pollution to marine habitats is one aspect of this.
Conclusion
Corrosion-resistant plain bearings are irreplaceable components in marine gear, advertising prevalent execution and life span in challenging saltwater situations. Their flexibility and significance in the sea industry are illustrated by their utilize in drive frameworks, deck gear, and toward the ocean stages. By utilizing progressed materials, imaginative plans, and legitimate upkeep methodologies, these heading essentially upgrade the unwavering quality and productivity of marine hardware. As innovation proceeds to progress, the future of corrosion-resistant plain bearings in marine applications looks promising, with progressing advancements pointed at advance progressing their execution and maintainability.

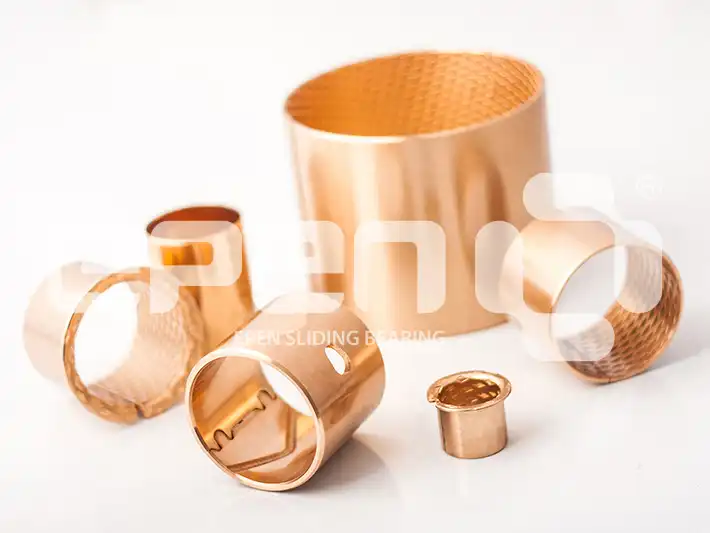

EPEN E90 BUSHING

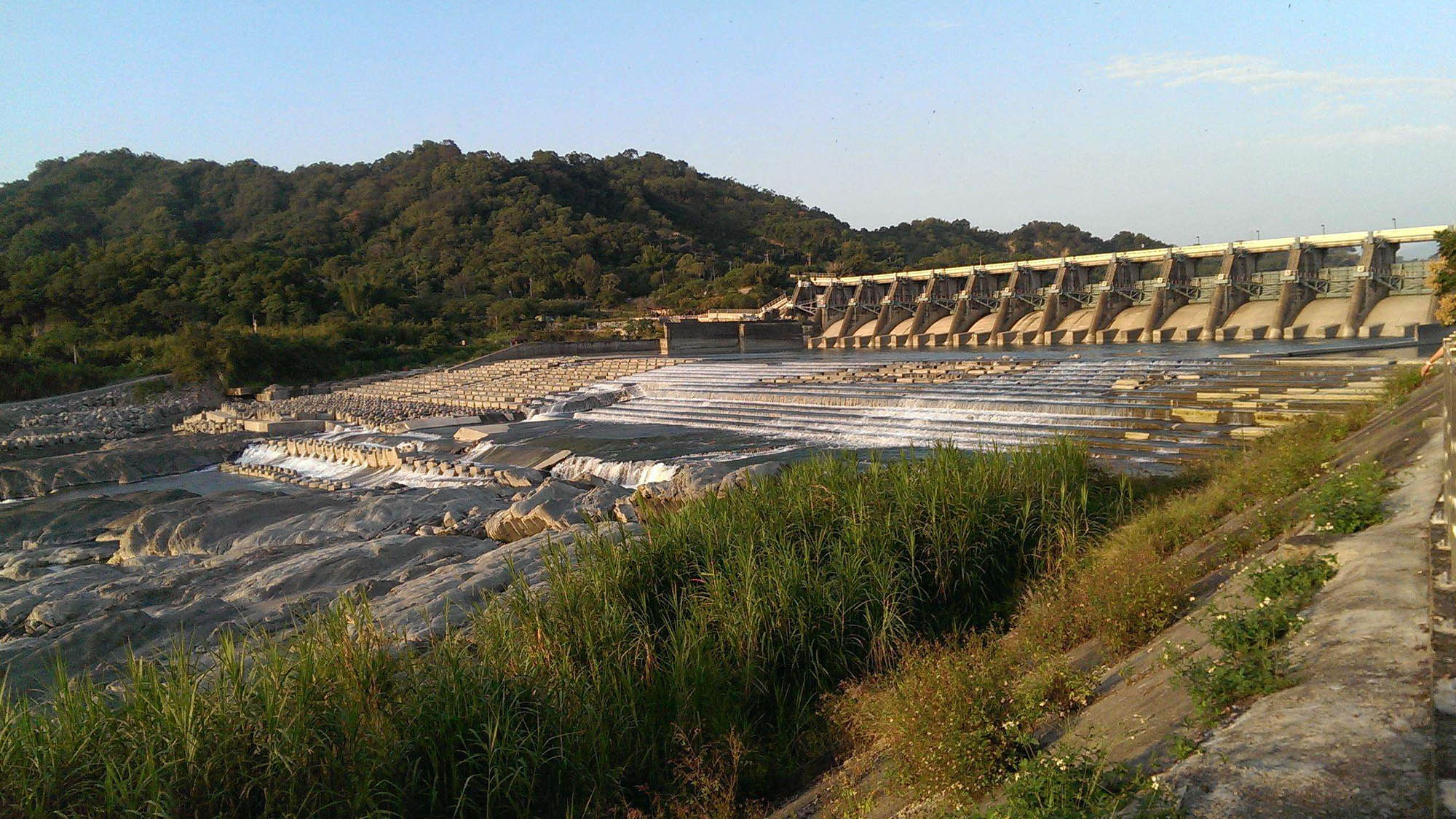

EPEN Sliding bearing in Hydraulic energy
FAQs
1. What makes plain bearings corrosion-resistant?
Corrosion resistance in plain bearings is achieved through the use of specialized materials like stainless steel, marine-grade bronze, or advanced polymers, as well as protective coatings and surface treatments.
2. How long do corrosion-resistant plain bearings typically last in marine applications?
The lifespan varies depending on the specific application and operating conditions, but properly maintained corrosion-resistant bearings can last several years to decades in marine environments.
3. Are corrosion-resistant plain bearings more expensive than standard bearings?
Initially, yes. However, their longer lifespan and reduced maintenance requirements often make them more cost-effective in the long run, especially in harsh marine environments.
Expert Corrosion-Resistant Plain Bearings for Marine Applications | EPEN
At Jiashan Epen Bearing Co., Ltd., a trusted corrosion-resistant plain bearings supplier, we specialize in manufacturing high-quality corrosion-resistant plain bearings for marine equipment. Our expert team combines innovative materials and advanced manufacturing techniques to deliver bearings that excel in harsh saltwater environments. From propulsion systems to offshore platforms, our products ensure reliability and longevity. Contact us at epen@cnepen.cn to discover how our corrosion-resistant plain bearings can enhance your marine applications.
References
Smith, J.R. (2020). "Advanced Materials for Marine Bearings: A Comprehensive Review." Journal of Marine Engineering and Technology, 15(3), 210-225.
Johnson, M.E. & Thompson, L.K. (2019). "Corrosion-Resistant Bearing Design for Offshore Applications." Offshore Technology Conference Proceedings, Houston, TX.
Marine Propulsion Systems: Principles and Innovations. (2018). By Dr. A.B. Williams. Nautical Press, London.
Corrosion in the Marine Environment: Challenges and Solutions. (2021). Edited by C.L. Anderson. Maritime Engineering Institute.
Zhang, X., et al. (2022). "Performance Analysis of Polymer Composite Bearings in Seawater-Lubricated Stern Tube Systems." Wear, 392-393, 78-88.
International Maritime Organization. (2020). "Guidelines for the Selection and Application of Corrosion-Resistant Materials in Marine Environments." IMO Publications, London.
