Guide to Sliding Bearing Failure Analysis and Prevention

Sliding bearings are basic in numerous mechanical settings since they permit for proficient and smooth development of moving parts. In any case, like any mechanical component, they can involvement disappointments that affect in general framework execution. This nitty dirty reference examines the complexities of analyzing and dodging sliding bearing dissatisfactions, giving engineers, bolster specialists, and industry pros with basic bits of information. You may enormously move forward the toughness and steadfastness of your sliding bearing frameworks by learning almost commonplace disappointment designs, taking great preventative activities, and utilizing cutting-edge demonstrative apparatuses.

Sliding bearings (plain bearings) are critical components in machinery, providing support and reducing friction between moving parts. Understanding their failure modes is essential for predictive maintenance, minimizing unplanned downtime, and extending equipment life. This guide outlines common failure types, their root causes, and proactive prevention strategies.

Part 1: Common Failure Modes & Root Cause Analysis

1. Fatigue Failure

Appearance: Cracks, pitting, or spalling on the bearing surface, often starting at the point of maximum stress.

Primary Cause: Cyclic loading beyond the material's endurance limit. This is exacerbated by:

Misalignment

Overloading

Improper fit (excessive tightness)

Unsuitable bearing material for the application.

2. Abrasive Wear

Appearance: Scratches, grooves, or a polished appearance on the bearing surface. A significant amount of fine particulate may be found in the lubricant.

Primary Cause: Contamination by hard particles (dirt, sand, metal debris) entering through seals, contaminated lubricant, or during assembly.

Solution: Improve filtration, use proper seals, and ensure a clean working environment during maintenance.

3. Adhesive Wear (Wiping or Scoring)

Appearance: Surface material is torn and transferred from one surface to another, often resulting in a rough, ragged texture.

Primary Cause: Insufficient lubricant film, leading to metal-to-metal contact. Contributing factors include:

Inadequate lubrication (wrong type, low quantity)

Excessive load or speed

High operating temperature

Poor surface finish.

4. Corrosion

Appearance: Pitting, etching, or uniform surface deterioration. Color may vary (reddish for ferrous oxides, green/blue for copper alloys).

Primary Cause: Chemical attack on the bearing material.

Acidic Lubricants: Lubricant breakdown forming acids.

Water Contamination: Ingress of water or moisture.

Aggressive Environments: Exposure to chemicals or corrosive atmospheres.

5. Cavitation Erosion

Appearance: Localized pitting or frosted areas, typically in the loaded zone of the bearing.

Primary Cause: Formation and implosion of vapor bubbles in the lubricant due to rapid pressure changes. Common in high-speed engines and hydraulic systems.

6. Erosive Wear

Appearance: Similar to abrasive wear but caused by high-velocity fluid flow carrying particles, leading to smooth, wave-like patterns.

Primary Cause: High-velocity contaminated fluid flow washing over the bearing surface.

Part 2: The Failure Analysis Process: A Step-by-Step Approach

Gather Information: Document operating conditions (load, speed, temperature), lubrication history, maintenance records, and the exact circumstances of the failure.

Visual Inspection: Carefully examine the failed bearing for the tell-tale signs listed above. Take high-resolution photographs.

Lubricant Analysis: Check the lubricant for viscosity change, contamination (particles, water), and acidity (Total Acid Number).

Dimensional Inspection: Measure the bearing for wear patterns, clearance, and conformity to specifications.

Material Analysis: In complex cases, use metallurgical analysis (e.g., SEM/EDS) to confirm material composition and identify corrosion products or embedded contaminants.

Root Cause Determination: Correlate all findings to identify the primary failure mechanism and its underlying cause.

Part 3: Proactive Prevention Strategies

Proper Bearing Selection: Choose the correct bearing type and material (Babbitt, bronze, polymer, etc.) for the specific load, speed, and environmental conditions.

Optimized Lubrication Regime:

Use the correct type and viscosity of lubricant.

Ensure adequate lubricant supply and flow.

Implement a regular oil analysis program.

Robust Contamination Control:

Use high-quality seals and replace them periodically.

Maintain clean lubricant with effective filtration systems.

Correct Installation and Maintenance:

Ensure proper alignment and fit (clearance).

Follow manufacturer's guidelines for installation torques and procedures.

Use clean tools and environments during assembly.

Operational Monitoring:

Monitor bearing temperature and vibration levels.

Listen for unusual noises.

Establish a predictive maintenance schedule based on condition monitoring.

Understanding Sliding Bearing Failure Mechanisms

Wear and Abrasion

Wear and abrasion are among the most common failure mechanisms in sliding bearings. These processes occur when the bearing surfaces experience friction and material loss due to continuous contact with mating components. Factors such as inadequate lubrication, contamination, and misalignment can accelerate wear rates. Advanced bearing materials, such as metal-plastic composites, offer enhanced wear resistance compared to traditional options.

Fatigue and Cracking

Cyclic loading and stress concentrations can lead to fatigue-induced failures in sliding bearings. Over time, microscopic cracks may initiate and propagate, ultimately resulting in bearing fracture. Proper material selection, surface treatments, and stress-relieving designs can mitigate fatigue-related issues. Regular inspections using non-destructive testing methods help detect early signs of fatigue damage.

Corrosion and Chemical Attack

Sliding bearings operating in harsh environments are susceptible to corrosion and chemical attack. These processes can compromise the bearing surface integrity, leading to increased friction and premature failure. Selecting corrosion-resistant materials, such as certain bimetal bearings, and implementing effective sealing systems are crucial for preventing chemical-induced degradation.

Implementing Effective Preventive Measures

Optimizing Lubrication Strategies

Proper lubrication is a fundamental requirement for maximizing the performance and service life of sliding bearings. Picking the correct lubricant type, viscosity, and distribution technique is crucial for developing an efficient lubrication plan. Some of the things that need to be thought about include operational speeds, load intensity, temperature changes, and environmental toxins. Maintaining a constant film strength is another benefit of setting up a routine for lubricant analysis, restocking, and replacement. By taking this preventative degree, we can reduce wear and grinding and increment long-term constancy.

Enhancing Contamination Control

Contamination is one of the most common causes of premature sliding bearing failure. Lubrication effectiveness can be compromised by surfaces that are damaged by dust, dirt, moisture, or chemical pollutants. Clean assembly procedures, filtration devices, and strong sealing systems should all be part of the design and maintenance process to reduce this risk. Maintaining protection requires regular checks of seals and filters and prompt replacements when needed. The smooth operation of sliding heading is guaranteed by utilizing compelling defilement control strategies, which significantly amplifies their valuable lives and decreases spontaneous downtime.

Proper Installation and Alignment

The correct installation and alignment of sliding bearings play a decisive role in ensuring their longevity and performance. Uneven distribution of stress, high friction, and rapid surface wear can all result from misalignment. Using precision alignment tools and according to manufacturer-recommended recommendations during assembly can help avoid these kinds of problems. In addition, when operating circumstances vary over time, occasional re-checks and modifications help maintain alignment. The efficient functioning of bearings, reduced maintenance needs, and reliable operation of the system are all supported by these preventative actions.

Advanced Diagnostic Techniques for Sliding Bearing Analysis

Vibration Analysis

Vibration analysis is one of the most widely used diagnostic techniques for evaluating sliding bearing health. Maintenance crews can detect imbalance, misalignment, or surface degradation early on by tracking vibration signatures across several frequency ranges. To effectively filter out noise and identify outliers, modern systems use machine learning models and sophisticated signal processing techniques. Moving from reactive to predictive maintenance, this method helps businesses save downtime, increase bearing life, and guarantee system reliability.

Oil Analysis and Tribology

Determining the state of sliding bearings requires an in-depth examination of lubricant characteristics, which is where oil analysis comes in. Engineers are able to foresee impending failures by diagnosing viscosity, contaminant levels, and wear particles. Surface tribological investigations shed light on wear patterns and material behavior, whilst spectroscopy and ferrography show the existence of impurities and metals. Better decision-making and optimized maintenance scheduling are made possible by a comprehensive diagnostic framework that is created by combining oil analysis with tribology.

Thermography and Temperature Monitoring

Thermography and temperature monitoring are highly effective for detecting abnormal heat patterns in sliding bearings. Hot spots, where there is excessive friction or lubrication failure, can be non-invasively visualized with infrared thermography. Systems that monitor temperatures continuously can pick up on even the most minute changes from typical operating ranges and send out alarms in real time, allowing for prompt action. Since overheating often precedes catastrophic failure, tracking thermal behavior allows operators to take corrective measures in time. Reduced repair costs, increased equipment life, and improved safety are all outcomes of this preventative approach.

Conclusion

If you need your mechanical frameworks to keep running easily and dependably, you require to learn how to analyze and anticipate sliding bearing disappointment. You may greatly increase bearing life and decrease downtime by learning how things break, taking preventative actions, and using diagnostic tools. Keep in mind that bearing materials and technology are always evolving as a result of research and development efforts, which is constantly pushing the limits of performance and reliability in different applications.

FAQs

1. What are the main advantages of metal-plastic composite bearings?

Metal-plastic composite bearings offer excellent wear resistance, low friction, and the ability to operate in dry or marginally lubricated conditions. They find extensive application in a variety of sectors, including transportation and construction machinery.

2. How often should sliding bearings be inspected?

The inspection frequency depends on the application and operating conditions. Generally, it's recommended to perform visual inspections during regular maintenance intervals and conduct more thorough analyses based on vibration or oil analysis data.

3. Can sliding bearings be refurbished?

In some cases, sliding bearings can be refurbished through processes like re-babbitting or surface reconditioning. However, the feasibility and cost-effectiveness of refurbishment depend on the bearing type, damage extent, and application requirements.

China Premium Sliding Bearing Manufacturer | EPEN

At Jiashan Epen Bearing Co., Ltd., a trusted sliding bearing factory, we specialize in providing high-quality sliding bearings and wear plates for diverse industrial applications. Our expertise in metal-plastic composite bearings, bimetal bearings, and single metal sliding bearings ensures optimal performance and longevity for your equipment. With a commitment to continuous innovation and customer satisfaction, our sliding bearing factory delivers tailored solutions to meet your specific needs. Contact us at epen@cnepen.cn to explore how our advanced bearing technologies can enhance your operations.

EPEN EMT Bushing

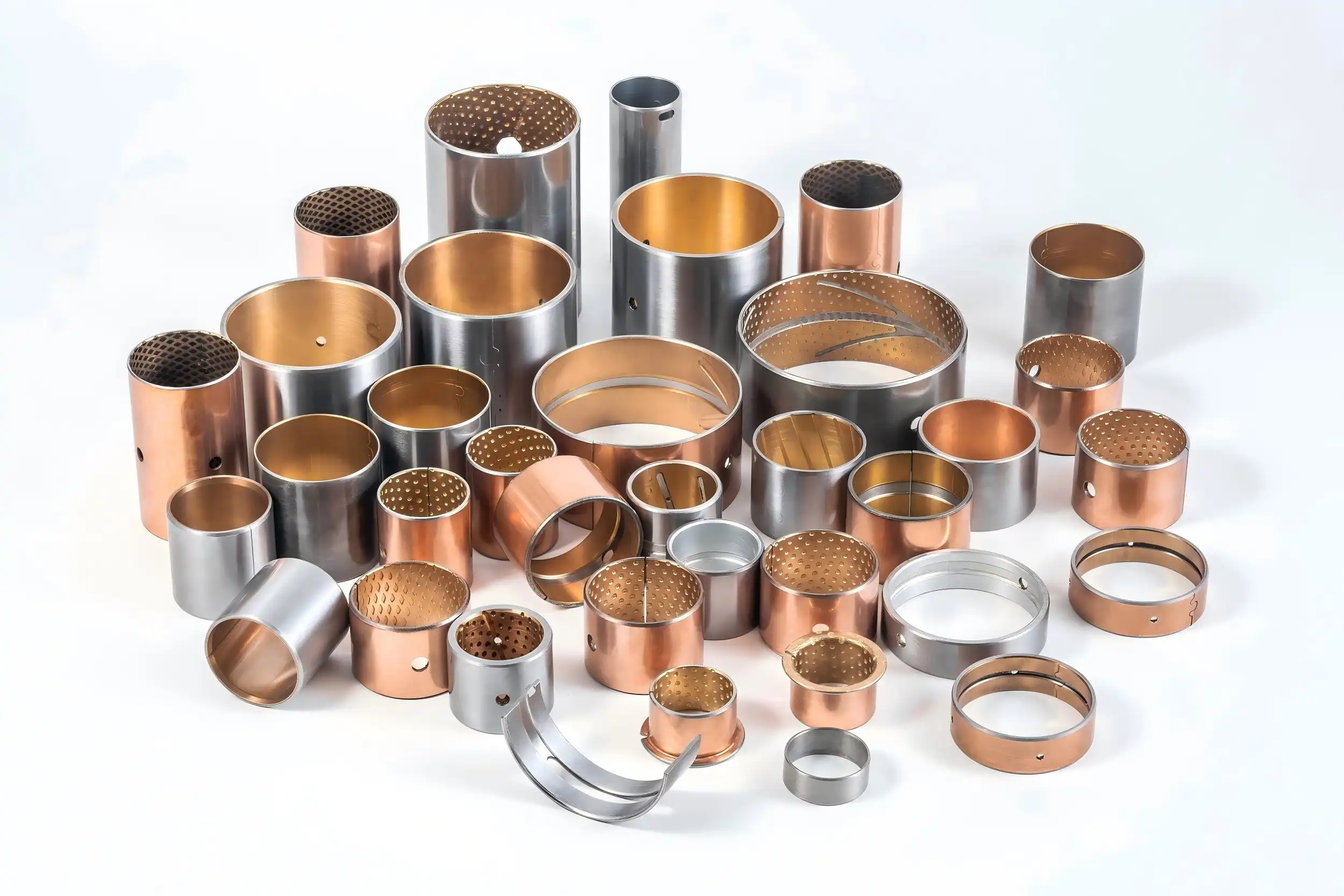

Epen EMT bushing
