EX Bushing Series Self-Lubricating Bearings: The Secret to Low Noise and Long Service Life

In the world of precision engineering and demanding applications, from automotive components to industrial automation, the quest for quieter operation and extended durability is never-ending. At the heart of many successful designs lies a critical but often overlooked component: the bearing. The EX Bushing Series of self-lubricating bearings has earned a reputation as a superior solution, and its "secret" boils down to a masterful combination of advanced materials science and intelligent design.

The enduring quest for mechanical components that operate silently while offering exceptional longevity often leads engineers to innovative material science. The secret to the remarkable performance of the EX bushing series lies in its sophisticated, multi-layered composite structure. This isn't just a single piece of material; it's an engineered system. A robust steel backing provides formidable strength, bonded to a porous sintered bronze interlayer. The true innovation, however, resides in the surface layer - a modified polyoxymethylene (POM) polymer. This layer is uniquely designed with a pattern of indents that act as microscopic reservoirs for grease. During operation, this stored lubricant is gradually released, creating a consistent, low-friction film that separates the moving surfaces, effectively dampening noise and dramatically reducing wear.

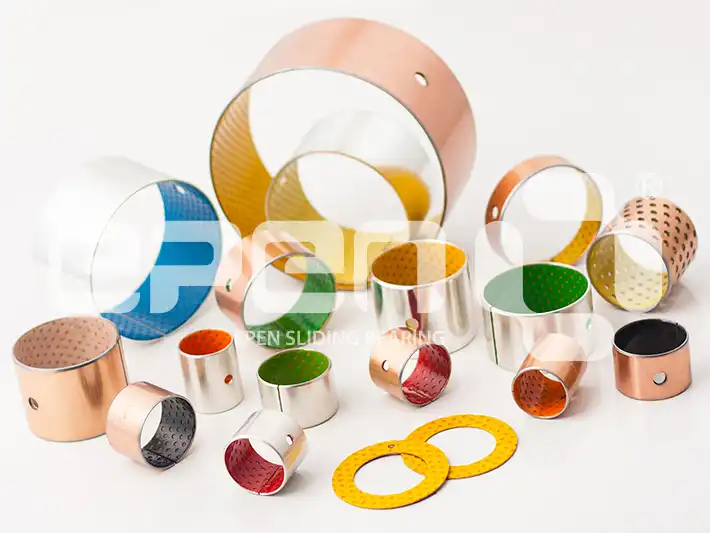

EPEN EX Bushing

The Core "Secret": Engineered Material Composition

The exceptional performance of EX Bushing bearings stems from their unique composite structure, which typically consists of three key layers:

Steel Backing: Provides exceptional mechanical strength, load capacity, and structural stability. It ensures a secure press-fit into the housing and excellent heat dissipation.

Porous Sintered Bronze Layer: This intermediate layer is sintered (fused with heat) onto the steel backing. It acts as a robust and porous matrix that...

PTFE/Lead Blend Top Layer: A low-friction, impregnated mixture of Polytetrafluoroethylene (PTFE – the slipperiest known solid) and lead or other polymers. This layer is the primary contact surface and the source of the self-lubricating property.

It is the synergistic interaction of these layers that unlocks the benefits of low noise and long life.

Decoding the "Low Noise" Secret

Noise in bearings is primarily caused by vibration, metal-to-metal contact, and stick-slip motion.

Inherent Damping Properties:
The PTFE-based lining is a viscoelastic material with excellent damping characteristics. It absorbs high-frequency vibrations and shocks that would otherwise be transmitted through the structure and radiated as noise. Unlike rigid ball bearings or plain bronze bushings, the EX Bushing material "deadens" these vibrations.

Elimination of Stick-Slip:
Stick-slip is a common cause of chatter and squeal. It occurs when the static friction is significantly higher than the dynamic (moving) friction. The PTFE lining in EX Bushings has an extremely low and consistent coefficient of friction, both at startup and during operation. This ensures smooth, continuous motion from the very first micron of movement, effectively eliminating stick-slip and the noise it generates.

Conformability and Even Load Distribution:
The composite material is slightly conformable, allowing it to accommodate minor misalignments or shaft deflections. This prevents localized stress points and edge-loading, which can cause squeaking and groaning in rigid bearings.

Decoding the "Long Service Life" Secret

Service life is a function of wear resistance and the ability to function without failure over time.

True Self-Lubrication:
This is the cornerstone of longevity. The PTFE and lead blend is uniformly dispersed throughout the porous bronze layer. As the bearing operates, a thin, continuous film of this lubricant is transferred to the surface of the mating shaft. This creates a low-friction PTFE-on-PTFE interface.

No Grease Degradation: Unlike oil or grease, which can dry out, wash out, or degrade with heat and time, the solid lubricant is always present.

Ideal for Dry or Hostile Environments: They perform flawlessly in applications where conventional lubrication is impossible, such as in clean rooms, food processing, or exposed to dust and dirt.

High Load Capacity and Wear Resistance:
The rigid steel backbone allows EX Bushings to withstand very high static and dynamic loads without deforming. The sintered bronze interlayer is exceptionally hard-wearing, and the PTFE top layer is highly abrasion-resistant. This combination results in an extremely low wear rate, even under high load and slow, oscillating movements—conditions that are particularly harsh for other bearing types.

Corrosion Resistance and Minimal Maintenance:
Many EX Bushing variants are treated or plated (e.g., with tin or zinc) to resist corrosion. Since they require no re-lubrication, they are virtually maintenance-free. This eliminates the risk of failure due to forgotten maintenance schedules and reduces the total cost of ownership.

Excellent PV (Pressure-Velocity) Value:
The performance of a bearing is often defined by its PV limit (Pressure x Velocity). The robust design of EX Bushings gives them a high PV rating, meaning they can operate reliably under a wide range of demanding speed and load combinations.

Where These "Secrets" Deliver Maximum Impact

The combination of low noise and long life makes the EX Bushing Series ideal for a vast array of applications:

Automotive: Suspension systems, steering linkages, seat adjusters, and clutch release bearings.

Industrial Automation: Robotics joints, linear guides, conveyor system joints, and packaging machinery.

Agriculture: Pivot points on tractors and implements, exposed to high shock loads and contaminants.

Consumer Appliances: Quiet and durable hinges, slides, and moving parts in washing machines, ovens, and furniture.

Construction Equipment: Hydraulic cylinder pins and linkages where high loads and dirt are prevalent.

Conclusion

The EX bushing series represents a sophisticated solution to the timeless engineering challenges of friction, noise, and wear. Its intelligent three-layer design, featuring a resilient POM sliding surface with integrated lubricant reservoirs, delivers a powerful combination of benefits. By providing a continuous, self-sustaining lubricating film, these bearings ensure whisper-quiet operation and an exceptionally long, maintenance-free service life. This advanced self-lubricating bearing material is not just a component; it is a strategic advantage, enhancing machine performance, reducing long-term operational costs, and enabling engineers to design more reliable and efficient systems across a vast spectrum of industries.

The "secret" of the EX Bushing Series is no mere mystery—it is the result of a meticulously engineered material system. By integrating the strength of steel, the durability of sintered bronze, and the superlubricity of PTFE, these bearings successfully solve the twin challenges of noise and wear. For engineers and designers, specifying EX Bushing self-lubricating bearings is a proven strategy to achieve quieter, more reliable, and longer-lasting products, ultimately leading to higher performance and reduced lifetime costs.

FAQs

What makes the EX bushing series different from standard sintered bronze bushings?

While both can be self-lubricating, the EX series features a POM polymer surface over the bronze layer. This provides a lower coefficient of friction, superior noise-dampening properties, and eliminates the "break-in" period often associated with purely metallic bearings. The POM layer is also more forgiving to slight misalignments.

Is any initial lubrication required during the installation of an EX bushing?

No, the EX bushing is pre-lubricated. The grease reservoirs within the POM surface are filled at the factory. The bearing is designed to release this lubricant throughout its operational life, making it a true "fit and forget" component that requires no external greasing.

In which temperature ranges can EX bushings operate effectively?

The EX bushing series is designed to operate reliably across a broad temperature spectrum, typically from -40°C to +110°C (-40°F to +230°F). This versatility makes it suitable for applications ranging from outdoor construction equipment to internal automotive components.

Can these composite bearings handle high static and dynamic loads?

Absolutely. The solid steel backing provides the EX bushing series with excellent mechanical strength, allowing it to support high static loads and withstand the dynamic forces and vibrations common in heavy machinery and industrial applications without deformation.
